Slide

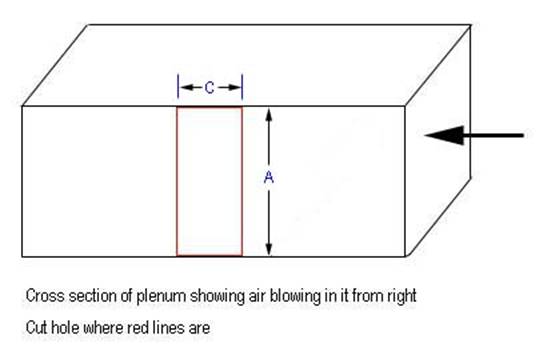

the heat exchanger into the hole for a test fit. Ideally the
tubes (D and E) should stick out of the plenum [see diagram on
previous page]. The header and tubes (F) can stick out of the
plenum as well, if necessary. As
long as the whole coil surface (B) is in the plenum, you should
be good even if a little more of the header (F and even G)
sticks out. While
test fitting it, try to determine how much tape is needed around
it. A different amount (thickness) may be needed on different
sides. You can purchase different thicknesses of tape so that it
will fit and seal properly. Place
foam tape around the outside of the heat exchanger to seal it
off so that it fits tight and air can’t blow by it. The
heat exchanger needs to be installed so it won’t move around.
The easiest way is to fabricate some pieces of metal into an
‘L’ shape, approx. the length of the heat exchanger like
shown below.
Slide
the heat exchanger carefully into the plenum to check the fit
again. If all looks good, you can seal off the ends of the heat
exchanger and the hole you made in the plenum with foil tape
made for ductwork. Input lines should be at the bottom, unless

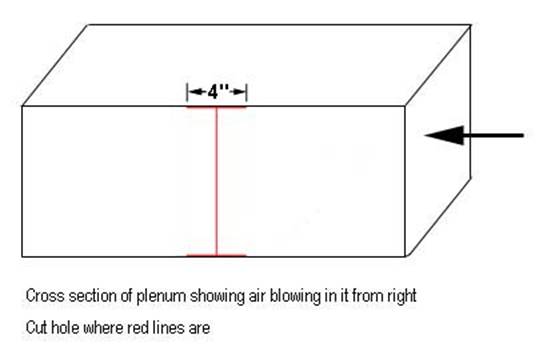

otherwise marked. Installing a Heat Exchanger that is Longer than the PlenumYou can install a heat exchanger in a plenum that is smaller than the length of the heat exchanger. This is a good ideal because you will get the whole core inside the ductwork. Only the frame will stick out 1". Proceed as follows. Cut
the lines at the top and bottom of the plenum, usually 4 inches
long (the width of the heat exchanger).

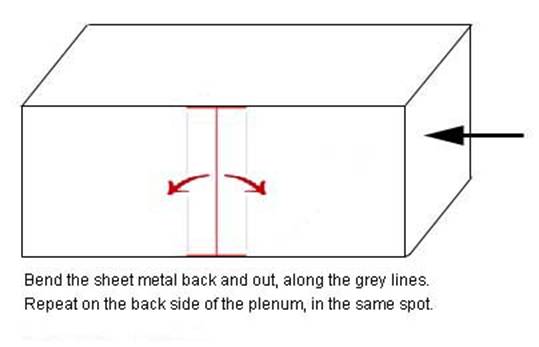

Cut
another line vertically, between the other two cuts, right in
the middle as shown.
Slide
the heat exchanger through the front hole to the back hole. So
that it protrudes front and
back. Ideally
the core of the heat exchanger will be entirely within
the plenum. (Item B) Crimp
the sheet metal to the edge of the heat exchanger. This is item
G in the diagram above (Page 23). Using channel-lock pliers to
crimp it, it makes a very nice professional looking
installation. Input lines should be at the bottom inlet unless
otherwise marked. This
not only forms a virtually airtight seal, but it also supports
the heat ex
A
transition was built here so that a larger heat ex
A

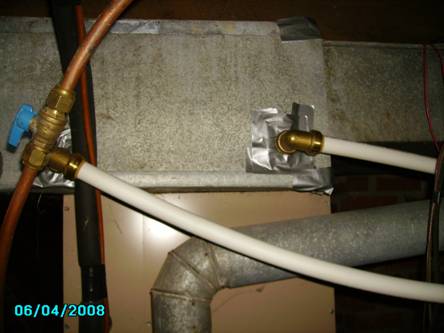

customer’s photo of his heat ex Bleeding a Heat ExchangerYou need to have two cut-off valves in the return line - one with a drain. With the pump running (turn the thermostat up to 90 F so that the pump comes on), simply close the brass valve on the return line quickly, holding it for 3-4 seconds. Then open the valve. Repeat the procedure at least 4 times.
If you’re unsure if all the air is getting out, you can separate the 2 valves at the Pex Pipe between them, after turning off both valves so that water won’t drain out. Insert a clear pipe in a 5-gallon bucket fro the drain valve. Close the other valve in the return line. Open the drain valve. Then simply close the valve on the return line quickly, holding it for 3-4 seconds. Then open the same valve again. Repeat the procedure 4-6 times. That way you can see if bubbles are coming out of the line.
|
|
|||||||
